Cable Binder Tape

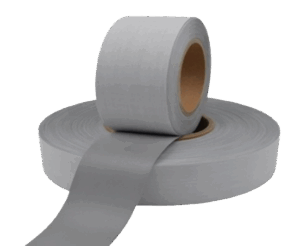

Grey Cable Binder Tape

Grey Cable Binder Tape

Construction:-

  • It is a thin Polyester Tape woven using two different coloured yarns in both directions to achieve its “signature Grey Colour Identity “.

End Use Applications:-

  • It is a multipurpose tape suitable for use as a binder tape to hold the insulated cores into a uniform circular shape during the assembly of different types of cables.
  • Used as a separation and bedding tape at various intermediate processing stages of different types of cables.
  • Protects the insulation and sheath from damage during handling and installation, as well as from environmental factors

Grey Cable Binder Tape

ParametersUT13-CB AUT20-CB A
Thickness (mm)0.13 mm ±0.020.20 mm ±0.02
Width (mm)15 mm to above15 mm to above
Weight (gm/Sq. mtrs)60 ±10105 ±10
Breaking Load (N/cm)≥ 120≥170
Base MaterialPolyesterPolyester
ColourGreyGrey

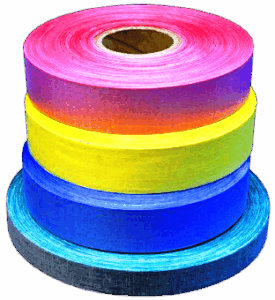

Various Colour Cable Binder Tape

Construction:-

  • It is a thin woven polyester tape coated with colour on both sides.

End Use Applications:-

  • Used for coloured identification of individual insulated cores of LT & MV Power Cables or groups of insulated cores of Instrumentation, Telecom and other special cables to facilitate ease in identification during end terminations.
  • Suitable for use as separation tape also in various types of special miniature cables
ParametersUT13-CBRUT20-CB RUT13-CB YUT20-CB YUT13-CB NUT20-CB NUT13-CB GUT20-CB GUT13-CB IUT20-CB I
Thickness(mm)0.13 mm ±0.020.20 mm ±0.020.13 mm ±0.020.20 mm ±0.020.13 mm ±0.020.20 mm ±0.020.13 mm ±0.020.20 mm ±0.020.13 mm ±0.020.20 mm ±0.02
Width (mm)15 mm to above15 mm to above15 mm to above15 mm to above15 mm to above15 mm to above15 mm to above15 mm to above15 mm to above15 mm to above
Weight (gm/ SQmtr)60 ±10105 ±1060 ±10105 ±1060 ±10105 ±1060 ±10105 ±1060 ±10105 ±10
Breaking Load (N/cm)≥120≥170≥120≥170≥120≥170≥120≥170≥120≥170
Base MaterialPolyesterPolyesterPolyesterPolyesterPolyesterPolyesterPolyesterPolyesterPolyesterPolyester
ColourRedRedYellowYellowBlueBlueGreenGreenWhiteWhite
Coloured SideDouble SideDouble SideDouble SideDouble SideDouble SideDouble SideDouble SideDouble SideDouble SideDouble Side
