Printed Tape

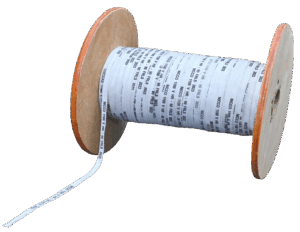

Printed Woven Identification Tape
Construction:-
- It is a woven cotton tape with customised matter printed on it using high quality colour.
End Use Applications:-
- Printed woven identification tapes serve for permanent, clear, and durable marking of cables, wire bundles, and components.
- The woven construction and printing method of the tape ensure that the markings remain legible even in harsh conditions, such as exposure to moisture, chemicals, oil or temperature.
- The tapes provide a permanent solution for marking, unlike temporary labels or markers that can fade or come off.
Printed Woven Identification Tape
| Parameters | UT30-PID |
|---|---|
| Thickness (mm) | 0.30 mm ± 0.05 |
| Width (mm) | 6 mm |
| Weight (g/m) | 1 |
| Breaking Load (Warp) (Kg f) | ≥32 |
| Base Material | Cotton |
| Length of roll | 2000 mtrs & 4000 mtrs |
| Printing | Customised |
| Tape Colour | White |

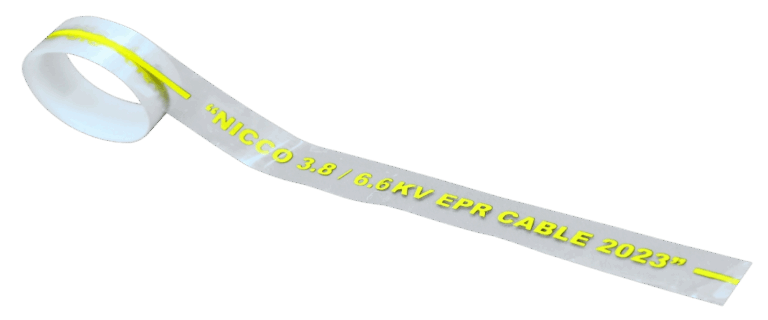

Heat Transfer Tape
Construction:-
- Made of high-quality polyester and ink to ensure non-breaking during printing and provide good printing quality.
End Use Applications:-
- Heat transfer tapes, especially Print transfer tapes, are used in cable manufacturing to transfer printed information like markings or identification onto the cable’s surface during the curing process.
- Used to mark cables with information such as cable type, size, or other relevant details.
- The printed information transferred to the cable surface becomes permanent and makes it easy to identify and trace specific cables.
Heat Transfer Tape
| Parameters | UT04-PT |
|---|---|
| Thickness (mm) | 0.04 mm |
| Width (mm) | 10 mm to 30 mm |
| Marking | Anti Twist Mark (Optional) |
| Length of roll (mtrs) | 500 mtrs |
| Printed Matter | Customised |
| Marking Colour | Generally Red & Yellow |
Different Colour Rubber Coated Cotton Tape (Printed)
Construction:-
- Coloured rubber coated cotton tape printed with customised matter using superior quality ink.
End Use Applications:-
- Rubber coated tapes with numbers or other markings printed on them are mainly used for cable identification and marking terminated or un-terminated cables and wires.
- Can also be used for bundling multiple cables together, providing mechanical protection and making it easier to manage and identify them.
- The rubber coating provides excellent abrasion and chemical resistance.
- Printed numbers or markings are clear and resistant to fading or smudging, even with exposure to weather or chemicals.
- Various colours, sizes, and printing option customization helps to meet specific needs.
Different Colour Rubber Coated Cotton Tape (Printed)
| Parameters | UT15-RCC PR | UT15-RCC PY | UT15-RCC PN | UT15-RCC PG | UT15-RCC PI | UT15-RCC PB |
|---|---|---|---|---|---|---|
| Thickness (mm) | 0.15 mm | 0.15 mm | 0.15 mm | 0.15 mm | 0.15 mm | 0.15 mm |
| Width (mm) | 15 mm to above | 15 mm to above | 15 mm to above | 15 mm to above | 15 mm to above | 15 mm to above |
| Weight (g/m2) | 103 ± 5 | 103 ± 5 | 103 ± 5 | 103 ± 5 | 103 ± 5 | 103 ± 5 |
| Breaking Load (Warp) (Kg/cm) | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 |
| Base Material | Cotton | Cotton | Cotton | Cotton | Cotton | Cotton |
| Coating Material | Rubber | Rubber | Rubber | Rubber | Rubber | Rubber |
| Printing | Customised | Customised | Customised | Customised | Customised | Customised |
| Colour | Red | Yellow | Blue | Green | White | Black |
