Narrow Fabric

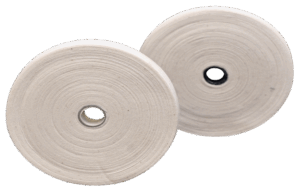

Woven Cotton Tape
Construction:-
- Woven directly in to tape form high quality cotton yarn using modern needle loom machines.
End Use Applications:-
- Can be used to wrap cables, providing mechanical protection and insulation.
- In some cases, cotton tape can be used to fill gaps and provide insulation within the cable’s structure.
- Used to bind and bundle cables together, making them easier to handle and organize.
Woven Cotton Tape
| Parameters | UT13 to 53-CT |
|---|---|
| Width (mm) | 6 mm to 100 mm (± 0.2 mm) |
| Thickness (mm) | 0.13 mm to 0.53 mm (± 0.02 mm) |
| Total Ends | Customised |
| Picks/dm | Customised |
| Mass (gm/mtr) | Vary according to thickness and width |
| Breaking Load (N/cm) | Breaking load is high. Vary according to thickness and width |
| Elongation % | ≤19 % |
| Weave | Plain & Twill |
| Material | Cotton |

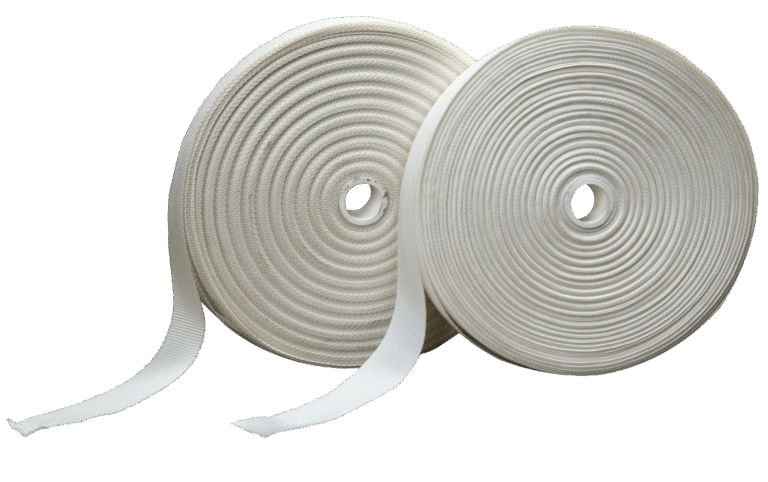

Woven Nylon 6 Tape
Construction:-
- Woven directly in to tape form high tenacity nylon 6 yarn using advanced needle loom machines.
End Use Applications:-
- In high voltage cables, woven nylon tape can be used to prevent electrolytic corrosion of metallic armour layers, enhancing the cable’s lifespan.
- Woven nylon tape can also be used as a friction tape to reduce friction in cable joints.
- Commonly used to bundle wires and cables and also used for garment accessories, bag straps, shoe reinforcements, and as a reinforcing material for seams and buttonholes.
- It’s used in the final wrapping of coils in transformers, relays, and other electrical devices, ensuring secure placement of leads and preventing movement.
